Lifecycle Status

ACTIVE (Last Updated: 5 days ago)

Factory Lead Time

16 Weeks

Mounting Type

Surface Mount

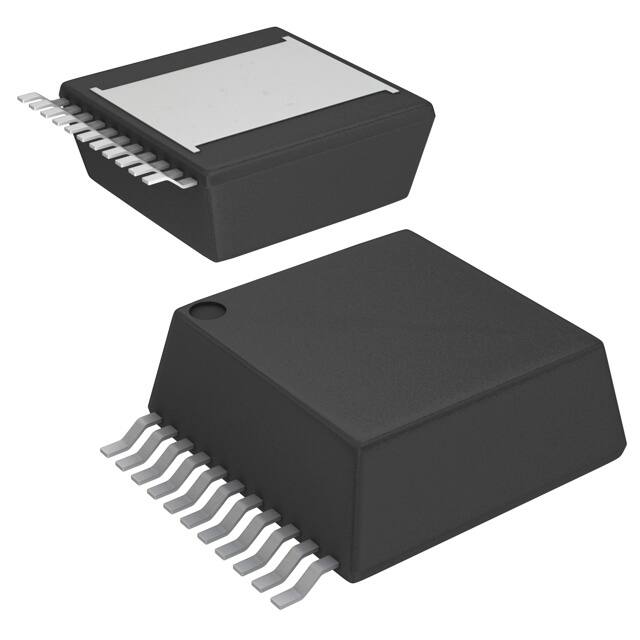

Package / Case

TO-PMOD-11, Power Module

Number of Pins

11

Voltage - Input (Nom)

12V

SwitchingFrequency

600kHz

Operating Temperature

-40°C~125°C

Packaging

Tape & Reel (TR)

Series

SIMPLE SWITCHER®

Size / Dimension

0.59Lx0.59W x 0.23 H 15.0mmx15.0mmx5.9mm

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

11

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Terminal Finish

Matte Tin (Sn)

Applications

ITE (Commercial)

Additional Feature

ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 6V

HTS Code

8504.40.95.80

Terminal Position

SINGLE

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

245

Number of Functions

1

Depth

15mm

Base Part Number

LMZ22010

Number of Outputs

1

Efficiency

92%

Voltage - Input (Max)

20V

Current - Output (Max)

10A

Current - Output

10A

Quiescent Current

3mA

Output Power

50W

Voltage - Output

6V

Input Voltage (Min)

6V

Control Mode

CURRENT-MODE

Control Technique

PULSE WIDTH MODULATION

Switcher Configuration

BUCK

Features

UVLO

Height

6.13mm

Thickness

5.9mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
